1602 16×2 LCD Keypad Shield For Arduino
IN STOCK

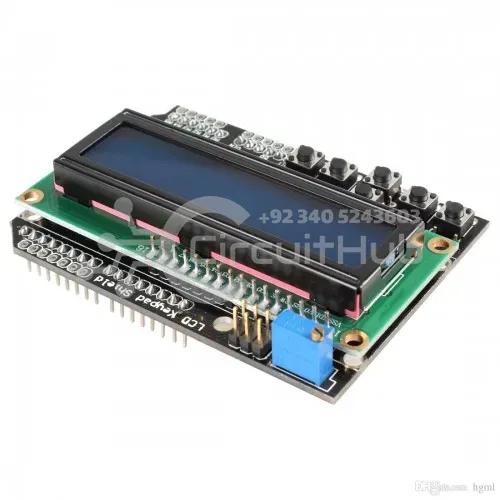

1602 16×2 LCD Keypad Shield For Arduino

Popular 16×2 LCD Keypad shield for Arduino or Freeduino boards. Includes a 2×16 LCD display and 6 momentary push buttons for menu navigation. Uses pins 4-10 to interface with the LCD, while Analog Pin 0 reads the push button inputs.

PKR 780

Price includes GST · Cash on delivery available

Delivery & payment

2–3 hour delivery in Rawalpindi & Islamabad
Nationwide delivery in 1–3 days · PKR 250 flat, free over PKR 10,000
Genuine parts · 7-day check warranty · tested before dispatch
Cash on Delivery available nationwide

Key specifications

Category
Development Boards & Kits

About this product

This LCD Keypad Shield for Arduino is a versatile expansion board compatible with Arduino and Freeduino. It features a 2×16 LCD display and 6 momentary push buttons, making it perfect for menu navigation, interactive projects, and Arduino-based electronics applications in Pakistan.

Key Features of LCD Keypad Shield for Arduino

  • Pins 4-10 used to interface with the LCD display
  • Analog Pin 0 reads push button inputs for seamless control
  • Contrast adjustment and backlight on/off control
  • Expands analog pins for easy sensor integration
  • User-friendly interface ideal for menu navigation and project selections
  • Compact and lightweight design for easy integration in Arduino projects

Technical Specifications of Arduino LCD Keypad Shield

  • 1602 white character LCD with blue backlight for clear display
  • Keypad with 5 buttons — select, up, right, down, left
  • Uses a single ADC channel with 5-stage voltage divider for button input
  • Operating Voltage: 5V
  • 5 push buttons for custom Arduino menu control
  • Reset (RST) button to restart Arduino program
  • Potentiometer for backlight and contrast adjustment
  • Expanded I/O pins and analog pinout for fast sensor extension
  • Standard DFRobot shield configuration
  • Compact dimensions: 80 x 58 mm

Benefits of Using LCD Keypad Shield with Arduino

  • Easy menu navigation for interactive Arduino projects
  • Quick setup and integration with Arduino boards
  • Improves user interface for sensor-based projects and data display
  • Durable and reliable for long-term electronics applications
  • Ideal for students, hobbyists, and professional engineers in Pakistan

How to Use Arduino LCD Keypad Shield

  • Attach the shield directly on top of your Arduino or Freeduino board
  • Connect sensors or modules to the analog and digital pins
  • Use Analog Pin 0 to read push button inputs for menu control
  • Adjust the backlight and contrast using the potentiometer for optimal visibility
  • Program your Arduino to interact with the LCD and keypad for custom projects

Compatibility with Arduino Boards

  • Arduino Uno, Nano, Mega, and Freeduino boards
  • Compatible with most Arduino shields and modules
  • Works with Arduino IDE and standard libraries for LCD and keypad

Buy LCD Keypad Shield for Arduino Online in Pakistan

Purchase your LCD Keypad Shield with Arduino from Circuithub.pk, the leading online store for electronic components in Pakistan. Shop trusted Arduino accessories online or visit electronics stores near you to get the best deals on Arduino development boards, sensors, and shields for your projects.
