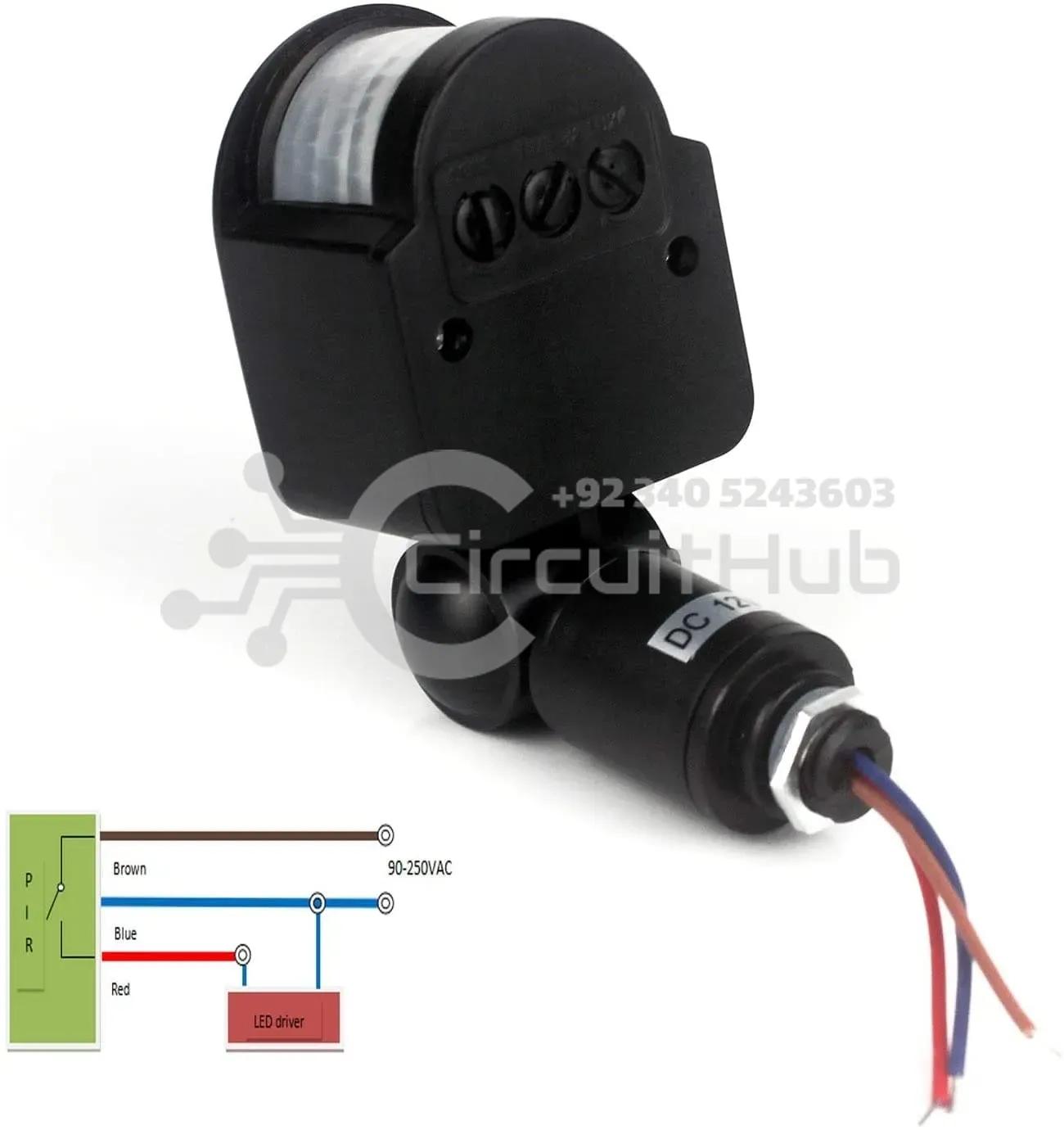

GuaranteedDC 12V Human Infrared Sensor Switch Light Sensor Infrared PIR Motion Sensor Switch 180 Degree
12V Human Infrared Sensor (PIR) – Intelligent pyroelectric motion sensor with industrial-grade chip for energy-saving, automatic light control. Perfect for home, office, or outdoor use. Available to buy online in Pakistan from CircuitHub, the best electronic component online store.
PKR 980/-
1
CATEGORY:Modules & Breakout Boards
Product Description
180° 12V PIR Human Infrared Sensor Switch – Automatic motion detection spotlight switch for home, office, and outdoor security. Detects human movement and automatically turns lights on/off based on presence, daylight, and user settings. Available online in Pakistan.
Key Features
- Built-in human infrared (PIR) sensor for motion detection
- Automatic day/night detection; adjustable light activation
- Load capacity with strong anti-jamming capability
- Adjustable time delay: 10 seconds – 7 minutes
- Adjustable detection sensitivity and range (up to 15m)
- Automatic on/off when humans enter or leave the sensing area
Adjustments
- Day/Night mode: Sun position – sensor works during the day; Moon position – sensor works at night only
- Time: Set delay before turning off after motion leaves the area
- Sense: Adjust sensor sensitivity if needed (default is generally fine)
Technical Specifications
- Detection range: 180°
- Operating voltage: 12V
- Detection distance: 15m (adjustable at 24℃)
- Delay time: 15 seconds – 7 minutes (adjustable)
- Installation height: 1.8m – 2.5m
- Material: ABS plastic
- Dimensions: 60 x 47 x 156mm
- Installation: Open type, 16mm mounting hole, adjustable angle
Applications
- Home and office security lighting
- Outdoor pathways, gardens, and corridors
- Automatic spotlight control for energy saving
