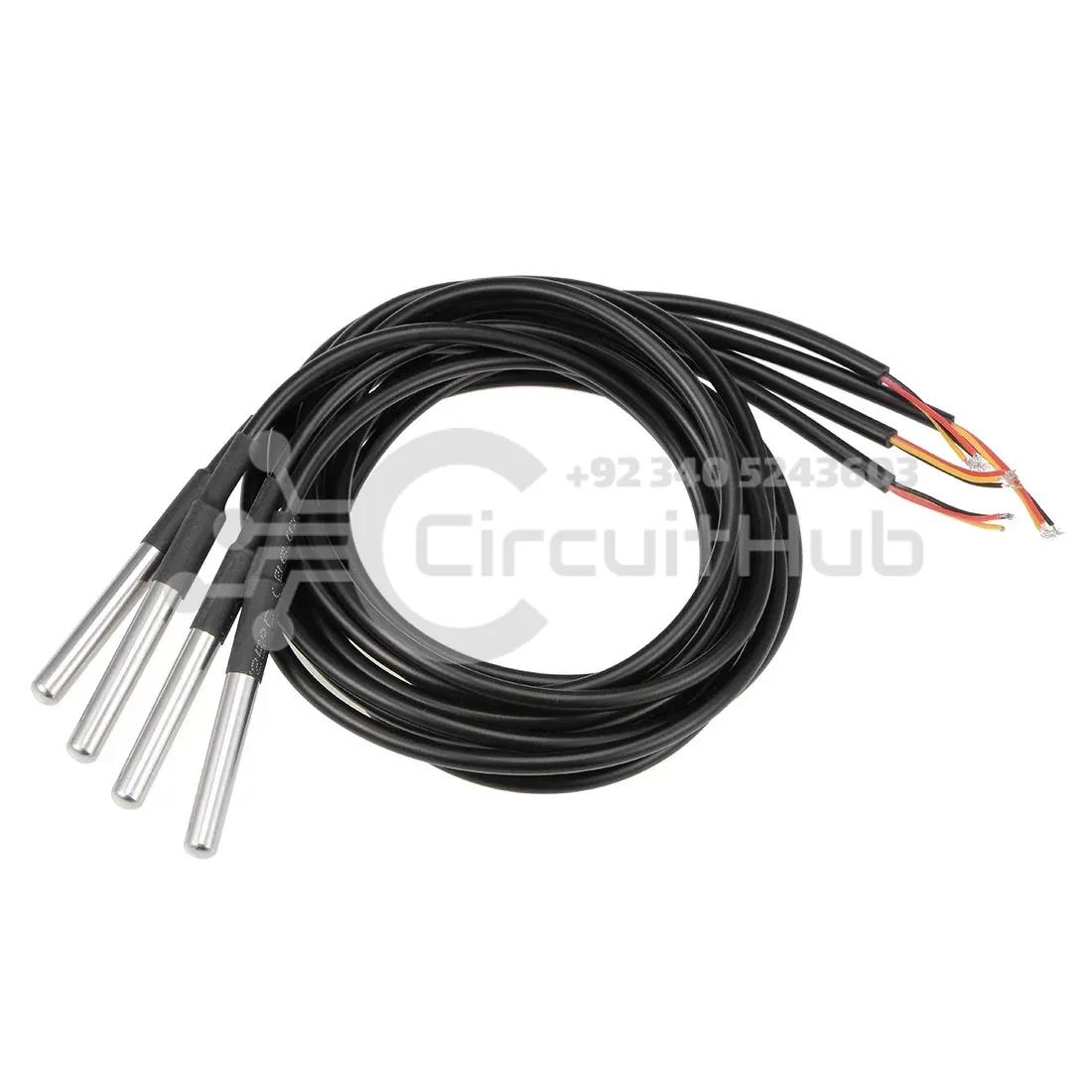

DS18B20 Temperature Sensor Waterproof Digital Thermal Probe Temp Sensor- 1 M Lead Length

The DS18B20 temperature sensor is a waterproof digital thermal probe designed for accurate temperature measurement. It is ideal for use in wet conditions or when you need to measure temperature from a distance.

This DS18B20 temperature sensor can measure up to 125°C, but since the cable is PVC jacketed, it is recommended to use it under 100°C. Being digital, it ensures there is no signal loss even over long distances.

Key Features of DS18B20 Temperature Sensor:

• Uses 1-Wire interface – requires only one digital pin for communication
• Unique 64-bit ID embedded in the chip
• Multiple DS18B20 temperature sensors can share one pin
• Built-in temperature-limit alarm system
• Fast query time – less than 750ms

3-Wire Connection Guide:

• Red wire – VCC
• Black wire – GND
• Yellow wire – DATA

Package Includes:

• 1 x Waterproof DS18B20 temperature sensor with 1M cable
• Reliable digital temperature measurement with no signal degradation
• Compact and durable design for long-term use
