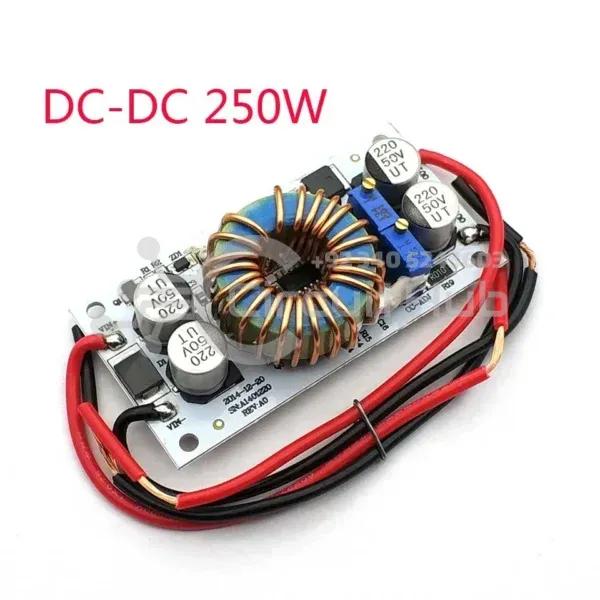

DC-DC Boost Converter Constant Current Mobile Power Supply 10A 250W LED Driver

The 250W DC-DC Boost Converter is a high-efficiency step-up power supply module designed for a wide range of electronics applications. This adjustable boost converter is ideal for DIY electronics, portable power systems, LED driving, and battery charging. With stable output voltage and constant current control, it ensures safe and reliable power delivery for high-performance devices.

Key Features of 50W DC-DC Boost Converter

• Input Voltage: DC 8.5V – 48V
• Maximum Input Current: Up to 10A (heat dissipation recommended above 8A)
• Quiescent Current: 10mA (may increase at higher output voltages)
• Output Voltage: 10V – 50V continuously adjustable
• Constant Current Range: 0.2A – 8A adjustable
• Operating Temperature: −40°C to +85°C (adequate cooling required)
• Operating Frequency: 150KHz
• Conversion Efficiency: Up to 96%
• Built-in Protection: Over-current protection and reverse polarity protection
• Mounting: 4 × 3mm screw holes for secure installation
• Module Dimensions: 70mm × 36mm × 13mm

Applications

• DIY adjustable power supply (12V input to 12–50V output)
• Portable car power supply for laptops and digital devices
• High-power LED driver applications
• Solar panel voltage regulation systems
• Battery charging circuits for lithium battery packs
• Custom notebook and mobile power supply projects

Package Includes

• 1 × 250W DC-DC Boost Converter Adjustable 10A Step-Up Constant Current Power Supply Module

Important Notes

• Ensure the input voltage does not drop below 10V to avoid malfunction or damage.
• Do not exceed the rated input or output voltage and current limits.
• Provide proper airflow or heat dissipation for continuous high-current operation.

This 250W DC-DC boost converter module is a dependable choice for electronics enthusiasts, engineers, and professionals who need adjustable voltage and constant current control. Order online in Pakistan from CircuitHub for reliable power solutions.
