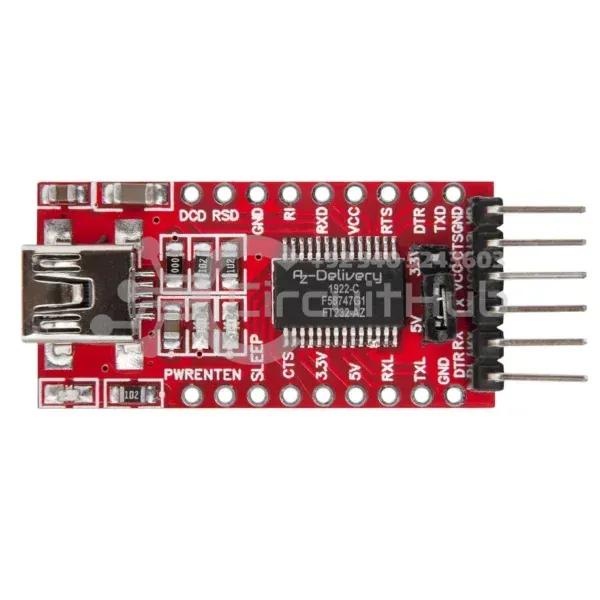

FT232RL 3.3V 5.5V FTDI USB to TTL Serial Adapter Module for Arduino Mini Port

The FT232RL USB to TTL Serial Adapter Module is a compact and reliable breakout board based on the FTDI FT232RL USB-to-serial IC. It is designed for easy programming and communication with official Arduino boards, Arduino Mini, and 5V-compatible Arduino clones. The board is also suitable for a wide range of general serial applications. Unlike standard FTDI cables, this module features a DTR (Data Terminal Ready) pin instead of an RTS pin. This enables an Arduino target board to automatically reset when uploading a new sketch — eliminating the need to manually press the reset button. Any Arduino board with a reset pin brought out to a 6-pin connector can benefit from this convenient auto-reset function.

Key Features

• Chipset: FT232RL by FTDI
• Full signal port breakout of the FT232RL chip
• RXD/TXD transceiver communication status indicator LEDs
• USB-powered with selectable 5V or 3.3V output (via jumper)
• Overcurrent protection with a 500mA self-resettable fuse
• Mini USB interface for easy connectivity

Specifications

• Pin Definition: DTR, RXD, TX, VCC, CTS, GND
• Pin Pitch: 2.54mm
• Module Size: 36mm (Length) × 18mm (Width)
• Interface: Mini USB

Applications

• Programming Arduino Mini and Arduino Pro boards
• USB-to-serial communication for microcontrollers
• General-purpose UART communication
• Debugging embedded systems

Package Includes

• 1 × FT232RL USB to TTL Serial Adapter Module

This FTDI USB-to-TTL adapter is the perfect solution for makers, hobbyists, and professionals who need stable and fast serial communication for their Arduino and embedded projects.
