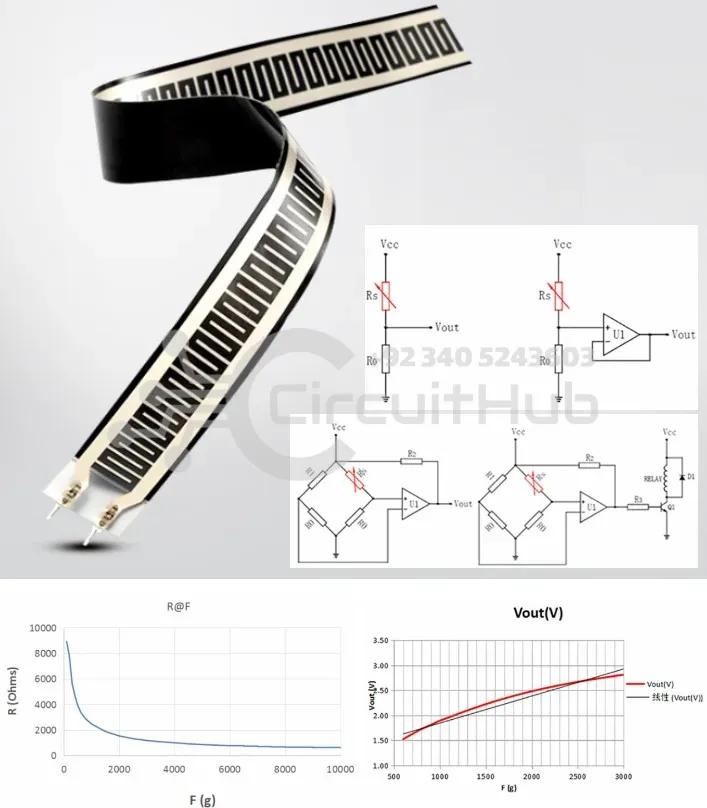

RP-L-110 FSR Force Sensitive Resistor Pressure Sensor

RP-L-110 Resistance Pressure Sensor High Precise Resistive Film Pressure Sensor Force Sensitive Resistor

Features:

• The flexible sensor has dual functions of waterproof and pressure sensing
• Flexible and ultra-thin, resistant to bending, and extremely fast response
• The pressure sensor adopts high-sensitivity flexible nanometer materials
• Can realize high sensitive detection of pressure and has a long service life
• When sensor detects outside pressure, the resistance of sensor will change
• Pressure signal can be converted into a corresponding electrical signal output using simple circuit

Specifications:

• Model: RP-L-110
• Length: 100 mm/3.9in
• Width: 10mm/04in
• Range: 0 ~ 500g
• Thickness: less than 0.25mm
• Response time: less than 10ms
• Recovery time: less than 15ms
• Working temperature: -20℃~ 60℃

Package Content: 1 x RP-L-110 FSR Force Sensitive Resistor Pressure Sensor Model: RP-L-110, Length: 100 mm/3.9in, Width: 10mm/04in, Range: 0 ~ 500g, Thickness: less than 0.25mm, Response time: less than 10ms, Recovery time: less than 15ms, Working temperature: -20℃~ 60℃.
