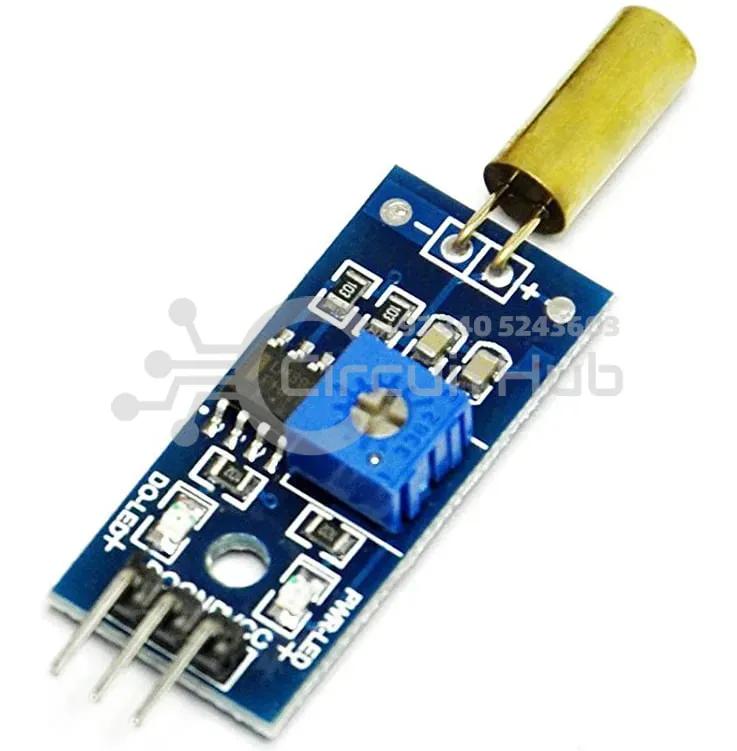

Tilt Sensor Module SW-520D

Tilt Sensor Module SW-520D is a compact and reliable electronic device designed to detect changes in planar position or orientation. It senses shifts from horizontal to vertical (and vice versa) and sends a corresponding digital signal when the tilt occurs. This tilt sensor is ideal for DIY electronics, robotics, IoT projects, and automation systems. With its simple contact-based design, the SW-520D provides precise tilt detection and can trigger alarms, indicators, or control circuits when orientation changes. Whether you are building safety systems, motion detectors, or smart gadgets, this tilt sensor module is perfect for beginners and professionals alike.

Key Features of Tilt Sensor Module SW-520D

• Compact and lightweight – perfect for small electronics and DIY projects
• Digital switch output (0 or 1) for easy integration with Arduino, Raspberry Pi, ESP32, and other microcontrollers
• High sensitivity for precise tilt detection, even with minor shifts
• Closes the circuit instantly when tilted for reliable response
• Built-in LED indicator lights up when the tilt switch is activated
• Durable and long-lasting design suitable for repeated use
• Low power consumption – ideal for battery-powered applications

Applications

• Motion and vibration detection in robotics and automation
• Safety, alarm, and anti-theft systems
• Orientation monitoring in smart gadgets, drones, and wearable devices
• Position detection in IoT and home automation projects
• Interactive electronics projects for STEM learning and prototyping
• Tilt-triggered switches for games, toys, and novelty devices

Technical Specifications

• Model: SW-520D
• Output Type: Digital (0 or 1)
• Operating Voltage: 3.3 – 5 VDC
• Operating Current: < 15 mA
• Trigger Angle: Approx. 10° – 15° tilt
• Indicator: Built-in LED
• Dimensions: Compact PCB module, approx. 2 × 1.5 cm
• Weight: 5 g

Package Includes

• 1 × Tilt Sensor Module SW-520D
• 1 × Quick-start guide / datasheet

If you are looking to buy a high-quality tilt sensor module SW-520D for electronics projects, robotics, or automation, Circuithub.pk offers trusted components with fast delivery and competitive pricing. This module is beginner-friendly and ready to integrate into your projects without any soldering or advanced electronics skills.
