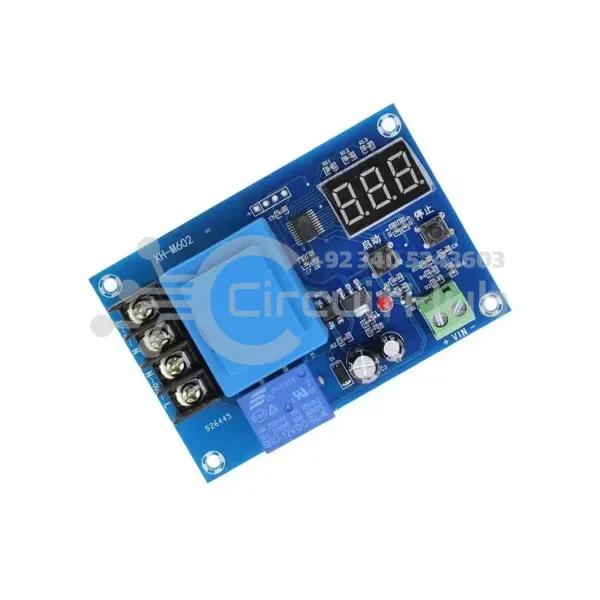

XH-M602 Battery Charge Control Module DC 6-60V Lithium Battery Charging Control Switch Protection Board

The XH-M602 Battery Charge Control Module is an intelligent battery charging controller designed for automatic charging and discharging management of DC 3.7V–120V lithium-ion and lead-acid batteries. Equipped with a high-precision digital voltage display, this module continuously monitors battery voltage and automatically controls the charging process to prevent overcharging, extend battery life, and improve charging efficiency. Its easy configuration, reliable performance, and wide voltage compatibility make it an ideal solution for DIY electronics, solar battery systems, UPS projects, electric vehicles, battery backup systems, and industrial power applications.

Specifications

• Model: XH-M602
• Input Voltage: AC 110–220V
• Battery Voltage Range: DC 3.7V–120V
• Display Accuracy: 0.1V
• Control Accuracy: 0.1V
• Output Type: Relay Switch Output
• Display: 3-Digit LED Digital Display
• Module Size: 86 × 58 × 27 mm
• Compatible Batteries: Lithium-ion, Lithium Iron Phosphate (LiFePO4), Lead-Acid, AGM, and Gel Batteries
• Operating Temperature: -10°C to +60°C

Key Features

• Supports battery charging control for 3.7V to 120V battery systems.
• Automatically starts and stops charging based on user-defined voltage values.
• Protects batteries from overcharging and excessive discharge.
• Bright LED digital display for accurate real-time voltage monitoring.
• High-quality relay output for stable and reliable operation.
• Easy voltage calibration using onboard Start and Stop buttons.
• Durable screw terminals for secure wiring connections.
• Compact PCB design suitable for DIY and industrial installations.
• Suitable for both lithium-ion and lead-acid battery charging applications.
• Simple installation with user-friendly programming interface.

Applications

• Battery charging automation
• Solar energy storage systems
• UPS battery management
• DIY battery charger projects
• Electric bicycle and scooter battery charging
• Power backup systems
• Industrial battery monitoring
• Portable power stations
• Laboratory battery testing
• Embedded electronics projects

How to Configure

• Set Charging Start Voltage: Press the Start button once to view the current value. Hold it for 3 seconds until it flashes, then adjust using the Start and Stop buttons.
• Set Charging Stop Voltage: Press the Stop button once to display the stop voltage. Hold it for 3 seconds to modify the value using the buttons.
• Restore Factory Settings: Press and hold both Start and Stop buttons until the display shows 888. Release both buttons to reset the controller. Default values are Start: 12V and Stop: 14V.
• Recommended Settings:
  • Charging Start Voltage = Battery Rated Voltage × 0.9
  • Charging Stop Voltage = Battery Rated Voltage × 1.2
  • Charging Current = Battery Rated Capacity × 0.1

Package Includes

• 1 × XH-M602 Battery Charge Control Module
