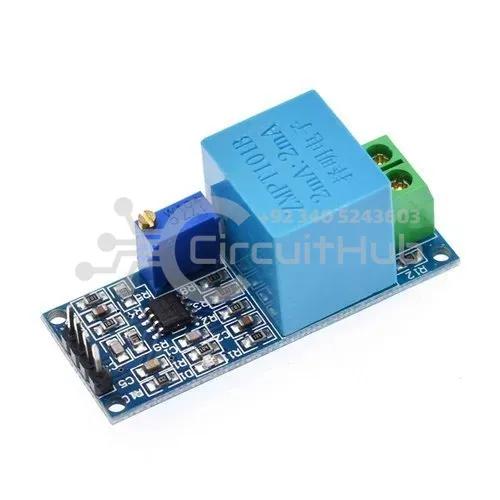

ZMPT101B Single Phase AC Voltage Sensor Module
IN STOCK

ZMPT101B Single Phase AC Voltage Sensor Module

Single-phase AC ZMPT101B voltage sensor module with high-precision voltage transformer and op-amp for easy 250V AC measurement.

PKR 559

Price includes GST · Cash on delivery available

Delivery & payment

2–3 hour delivery in Rawalpindi & Islamabad
Nationwide delivery in 1–3 days · PKR 250 flat, free over PKR 10,000
Genuine parts · 7-day check warranty · tested before dispatch
Cash on Delivery available nationwide

Key specifications

Category
Modules & Breakout Boards

About this product

The ZMPT101B Single Phase AC Voltage Sensor is designed for high-precision voltage measurement. Equipped with the ZMPT101B series voltage transformer and a high-precision op-amp circuit, it easily measures AC voltage up to 250V and provides accurate analog output. Perfect for Arduino and DIY electronics projects.

Advantages of ZMPT101B

  • Measures AC voltage up to 250V
  • Lightweight with on-board micro-precision voltage transformer
  • High precision op-amp circuit for accurate readings
  • Adjustable analog output for fine-tuning
  • Consistent performance for voltage and power measurement

Features of ZMPT101B AC Voltage Sensor

  • Active output single-phase AC voltage sensor module
  • High galvanic isolation for safety
  • Wide measurement range up to 250V AC
  • High accuracy and stability
  • Analog output that can be adjusted to match your system

Technical Specifications

  • Output Signal: Analog 0-5V
  • Operating Voltage: DC 5V–30V
  • AC Voltage Measurement Range: up to 250V
  • Rated Input Current: 2mA
  • Module Size: 49.5 mm x 19.4 mm

Package Includes

  • 1 x ZMPT101B AC Voltage Sensor Module

Arduino Integration

The ZMPT101B Arduino code allows easy interfacing with Arduino boards for single-phase AC voltage monitoring and measurement applications.
