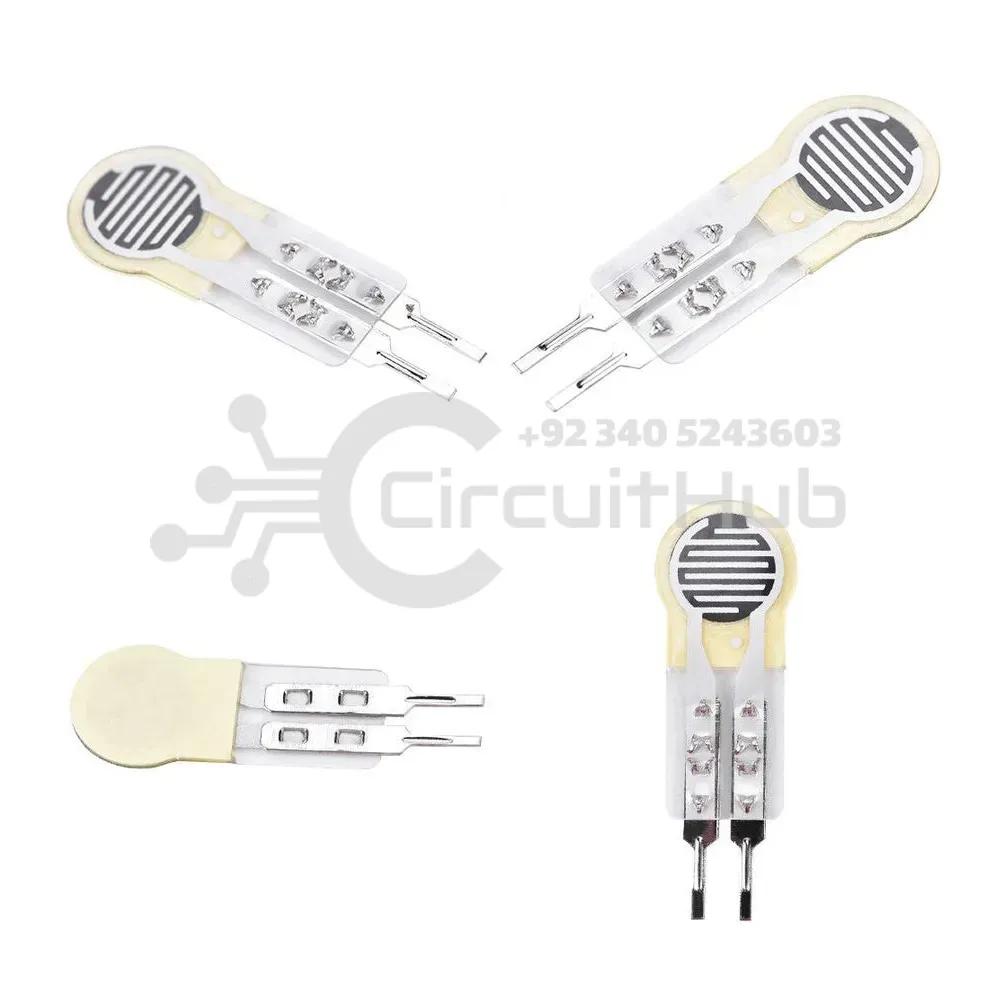

FSR RP-C7.6 0.3 inch Thin Film Force Sensitive Resistor Pressure Sensor

RP-C7.6 0.3 inch Thin Film Pressure Sensor FSR Small Size Force Sensitive Resistor

Features:

• The flexible sensor has the characteristics of flexible ultra-thin, ultra-low power consumption and extreme speed response, etc.
• Small size, this flexible pressure sensor is based on new nanometer pressure-sensitive materials supplemented by ultra-thin film substrate.
• This pressure sensor has the characteristic of high stability, high consistency.

Advantages:

• Durable and designed to sense static and dynamic pressure with high respond speed.
• Records the intensity and frequency of force, widely used in pressure switch, bed monitoring system, intelligent sneaker, and medical device system.
• Easy to use, made of ultra-thin film with excellent mechanical property, excellent conductive materials, and nanometer pressure sensitive layers.

Working Principle:

• Thin film and pressure sensitive layer on the upper layer, and thin film and conductive circuit on the lower layer.
• Glued together by double sided tape.
• Converts pressure into resistance as outside pressure applies to the active area.

Specifications:

• Detection area (detection range): 7.6 mm 0.3" circle
• Physical Diameter: 5.6mm 0.22" circle
• Output signal (output signal): Passive variable to hold
• Force sensitive range (range), pressure test: 100g to 10 kg
• Lifespan (life):> 10 m letter actuations
