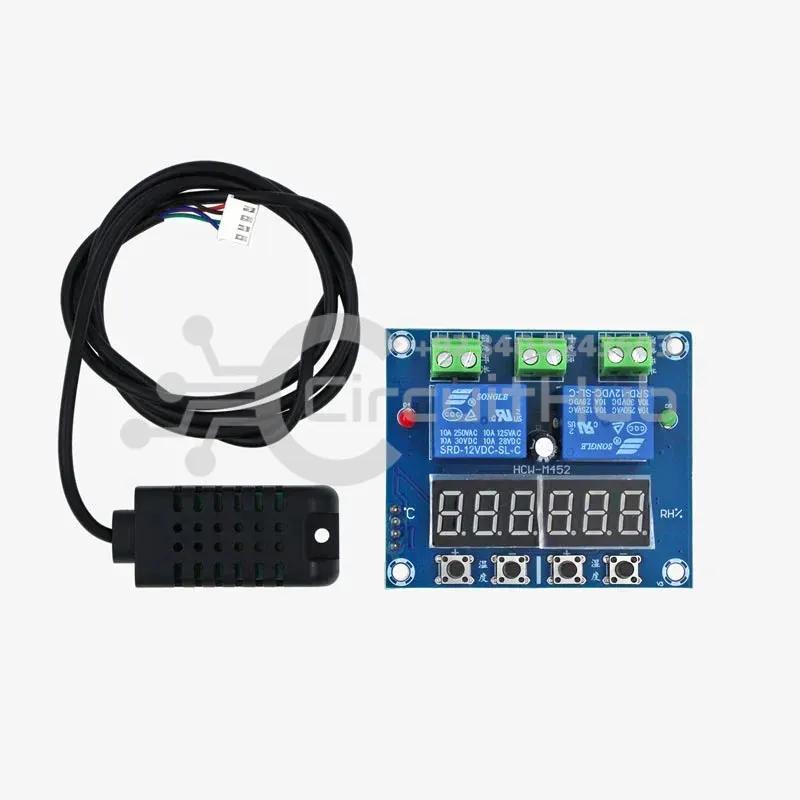

XH-M452 Incubator Temperature & Humidity Controller

The XH-M452 Digital Temperature and Humidity 12VDC Controller, is used for the measurement and control of high precision temperature systems. The module runs on a 12VDC supply. The module, also has separate 220VAC 10A Relay outputs for Heater and Humidity Generators (External Fan, and Humidifier).

Specifications:

• Model: XH-M452
• Input voltage: DC 12V
• Temperature range: -20~60 Celsius
• Humidity range: 0%-100% RH
• Detection accuracy: 0.1 Celsius, 0.1% RH
• Sensor length: 100mm
• Output Type: Relay Output(Switch Output) 10A/250VAC, 10A/30VDC
• Dimensions: 65 X 55 X 28mm
